AC4 Combi

AC4 COMBI

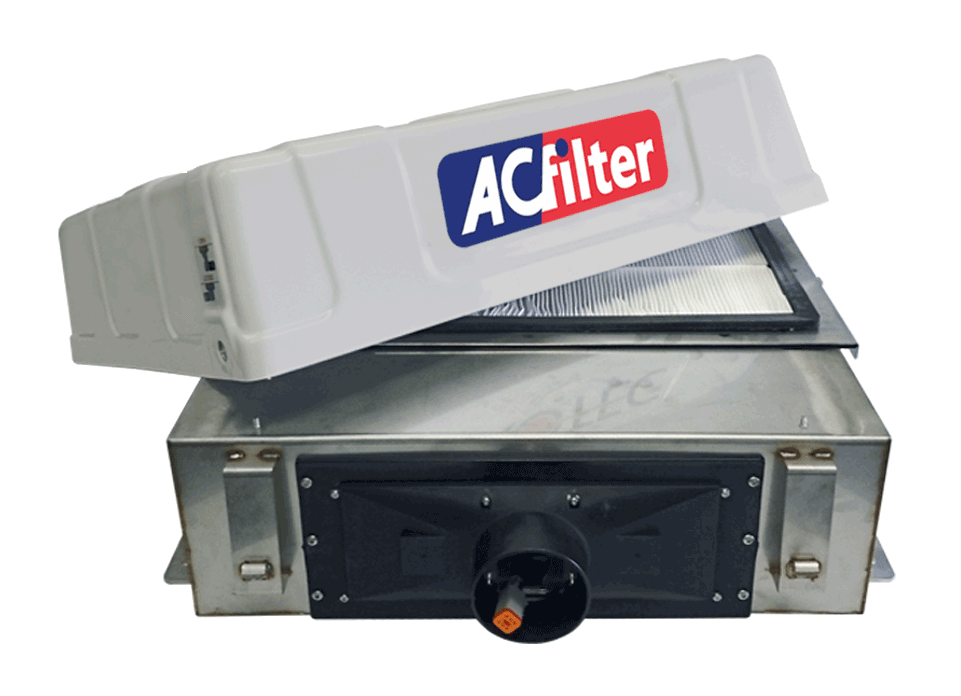

The AC4 Combi unit is specially designed for mounting on the roof or against the rear wall. Thanks to a special adapter we can easily mount the unit. This model is therefore ideal for trucks and excavators. Possible  filter package contains P1 + P3 + 10kg carbon filter.

Specificaties

Dimensions
Weight
Voltage
Power

Current
Standard Colour
Filter dimensions
Material Unit
Material Hood
Max. Overpressure
Filter possibilities

Mounting
Filter detection
Controller

735 x 660 x 205 mm

32 kg

12 VDC & 24 VDC

180W (12VDC),
120W (24VDC)

Imax 15,9 A
RAL7047

600 x 336 mm

Stainless Steel SS304

ABS

400 Pa, 120m3/h

10 kg Carbon,
P1, P2, P3 (HEPA)

Horizontal en Vertical

2x
ACF

Dimensions:  735 x 660 x 205 mm
Weight:  32 kg
Voltage:  12 VDC & 24 VDC
Power:  180W (12VDC),
              120W (24VDC)
Current:  Imax 15,9 A
Standard Colour:  RAL7047
Filter dimensions: 600 x 336 mm
Material Unit:  Stainless Steel SS304
Material Hood:  ABS
Max. Overpressure:  400 Pa, 120m3/h
Filter possibilities:  10 kg Carbon,
                          P1, P2, P3 (HEPA)
Mounting:  Horizontal and Vertical
Filter detection:  2x
Controller:  ACF
