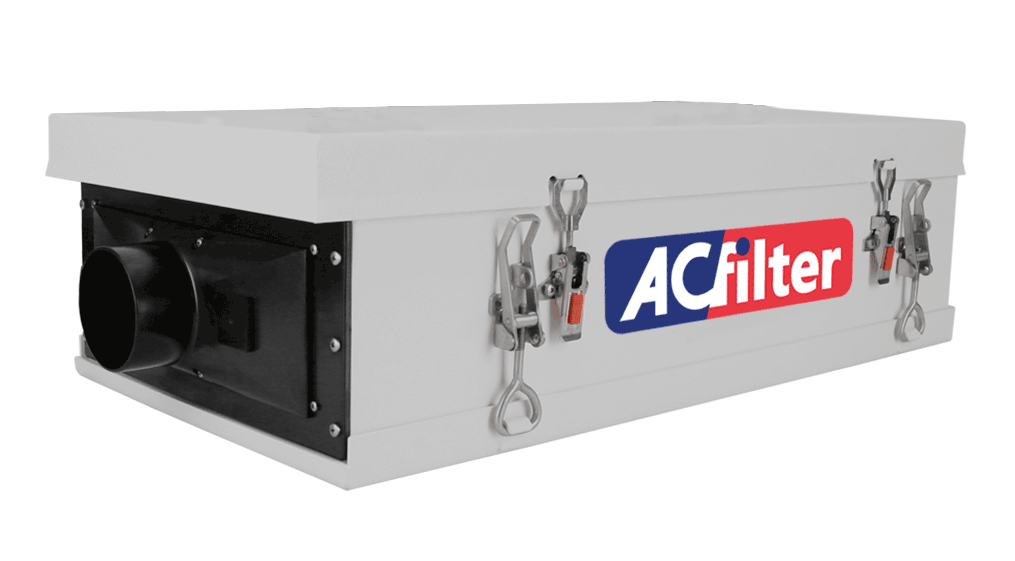

AC8 Ultra Low

AC8 ULTRA LOW

We developed the AC8 Ultra Low especially for machines with limited headroom and mounting options. This unit has a perfectly optimized filter capacity in relation to its compact dimensions. Possible filter package contains P1 + P3 + 10 kg carbon filter.

Specificaties

Dimensions
Weight
Voltage
Power

Current
Standard Colour
Filter dimensions
Material Unit
Material Hood
Max. Overpressure
Filter possibilities

Mounting
Filter detection
Controller

850 x 450 x 260 mm
38 kg
12 VDC & 24 VDC
180W (12VDC),
120W (24VDC)
Imax 15,9 A
RAL7047
600 x 336 mm
Stainless Steel SS304
Stainless Steel SS304
400 Pa, 120m3/h
10 kg Carbon,
P1, P2, P3 (HEPA)
Horizontal
2x
ACF

Dimensions:  850 x 450 x 260 mm
Weight:  32 kg
Voltage:  12 VDC & 24 VDC
Power:  180W (12VDC),
              120W (24VDC)
Current:  Imax 15,9 A
Standard Colour:  RAL7047
Filter dimensions: 600 x 336 mm
Material Unit:  Stainless Steel SS304
Material Hood: Stainless Steel SS304
Max. Overpressure:  400 Pa, 120m3/h
Filter possibilities:  10 kg Carbon,
                          P1, P2, P3 (HEPA)
Mounting:  Horizontal
Filter detection:  2x
Controller:  ACF
